JACK PANELS
LONG FRAME 1/4" TELEPHONE JACK PANELS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
LONG FRAME (1/4") TELEPHONE JACK PANELS
STANDARD SINGLE ROW JACK PANELS
SERIES 1200 AND 1400
SERIES 1200
Panels accomodate 24 T-Jax ? jacks in standard 1.75 inch x
19 inch racks. Jack openings are on alternate .625 inch and
.750 inch spacing; twin plugs cannot be cross-connected
between adjacent jack pairs. Includes designation strips
(marking strips and transparent plastic covers).
SERIES 1300
Same as Series 1200, except MT-Jax ? are used in panel
assemblies.
SERIES 1400
Mounts 26 T-Jax ? . Openings are on continuous .625 inch
centers. Twin plug can be used on any two adjacent jacks.
Single designation strip (marking strip, and plastic cover).
WEco equivalent is 230B.
SERIES 1400300
Same as Series 1400, except designation strip is
Kwik-Change ? type which is easier to install and remove and
provides larger vertical designation marking area. Strip holder
is recessed into top of panel for additional panel strength.
1400301 has single height Kwik-Change ? designation strip.
1400315 has a single height Kwik- Change ? designation strip
along bottom of panel and double height strips above jacks.
Top designation strip has .188 inch overhang above 1.75 inch
panel height, to help seal small opening between adjacent
panels. CAUTION: Because of this overhang, 1400315
cannot be mounted one above another in a rack.
SERIES 1500
Same as Series 1400 except MT-Jax ? are used in panel
assemblies.
SPECIFICATIONS
Jack Panel: General purpose black phenolic resin
Frame (except 1400300): Plated, steel
End Bracket and Side Strip (1400300 only): Cold rolled
plated steel
Designation Strip (except 1400300): Clear plastic.
"Kwik-Change" Designation Strip (1400300): Extruded
aluminum, black anodized and black thermoplastic
UL 94V-0.
Marking Strip: White plastic, matte finish.
Marking Strip Cover: Clear extruded plastic.
Screws: #6-32 x .25 inch phillips RHMS (for mounting jacks).
ORDERING
Part number table lists blank panels and popular jack panel
assemblies. If you wish to mount components on basic panels,
order jacks, lamp jacks, and switches separately. (See
appropriate section in this catalog.) For other panel assemblies,
provide complete details with your inquiry or order. Switchcraft
can build special assemblies to your requirements in small
or large quantities. See wire wrapping data. Series 1200
and 1400 are available with holes pre-drilled for vertical
designation strips (Series DS320). Add prefix "D" to part
numbers for pre-drilled panels: D1200, D1400301, etc.

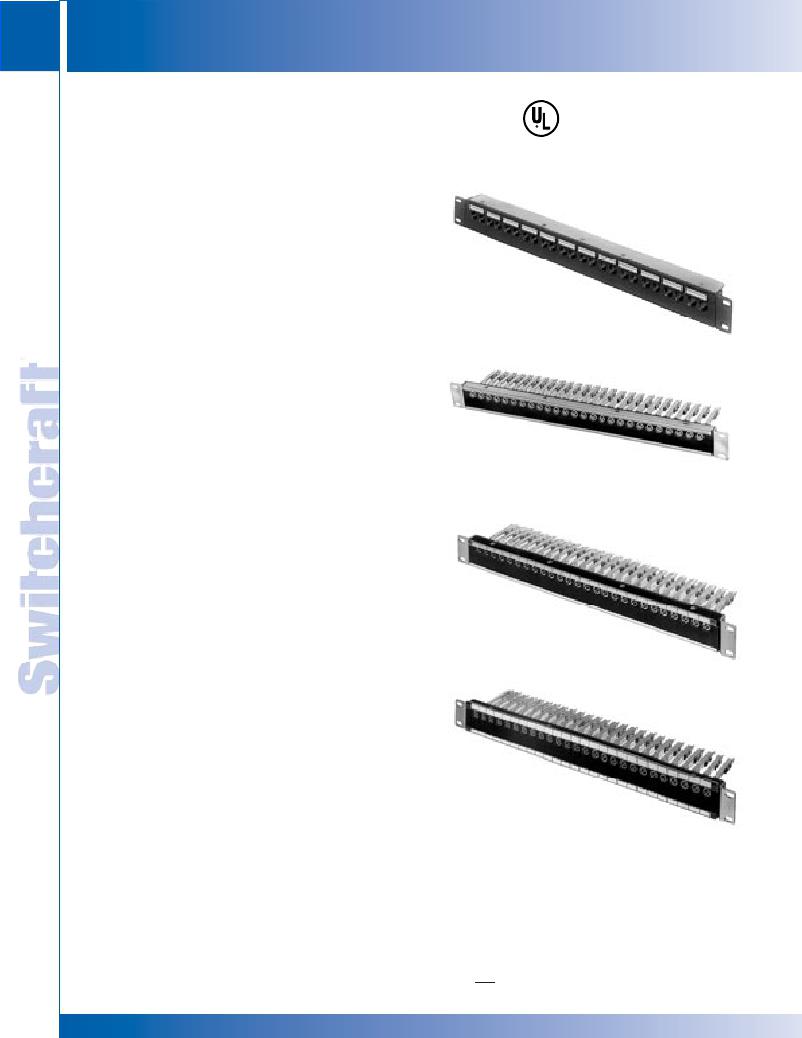

Series 1200
*Shown with optional
jacks. See next page for
specific part numbers.
Series 1400
*Shown with optional
jacks. See next page for
specific part numbers.
1400301
*Shown with optional
jacks. See next page for
specific part numbers.
1400315
*Shown with optional
jacks. See next page for
specific part numbers.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
